Projects

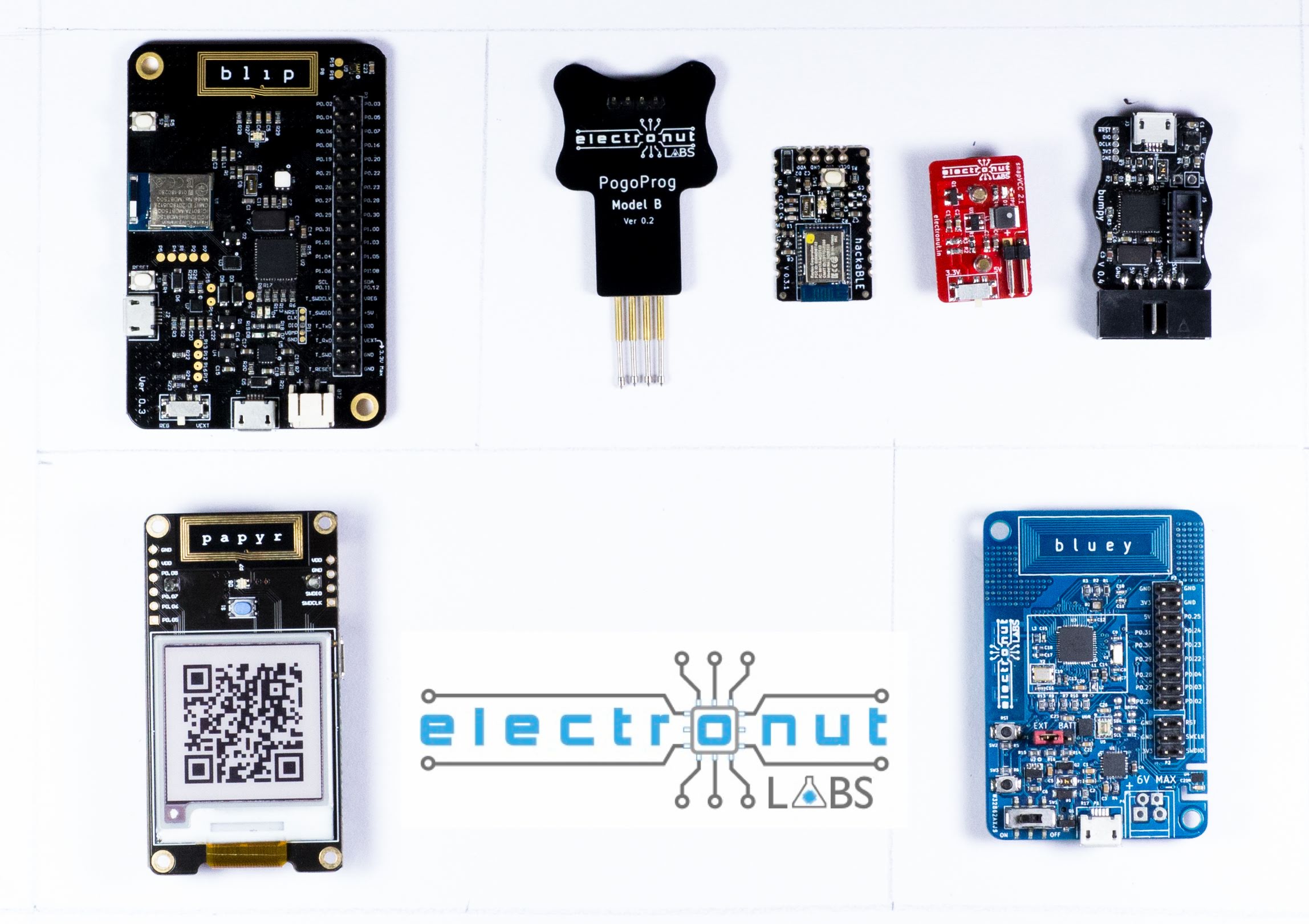

Electronut Labs products
BLE, FPGA, Debugging tools

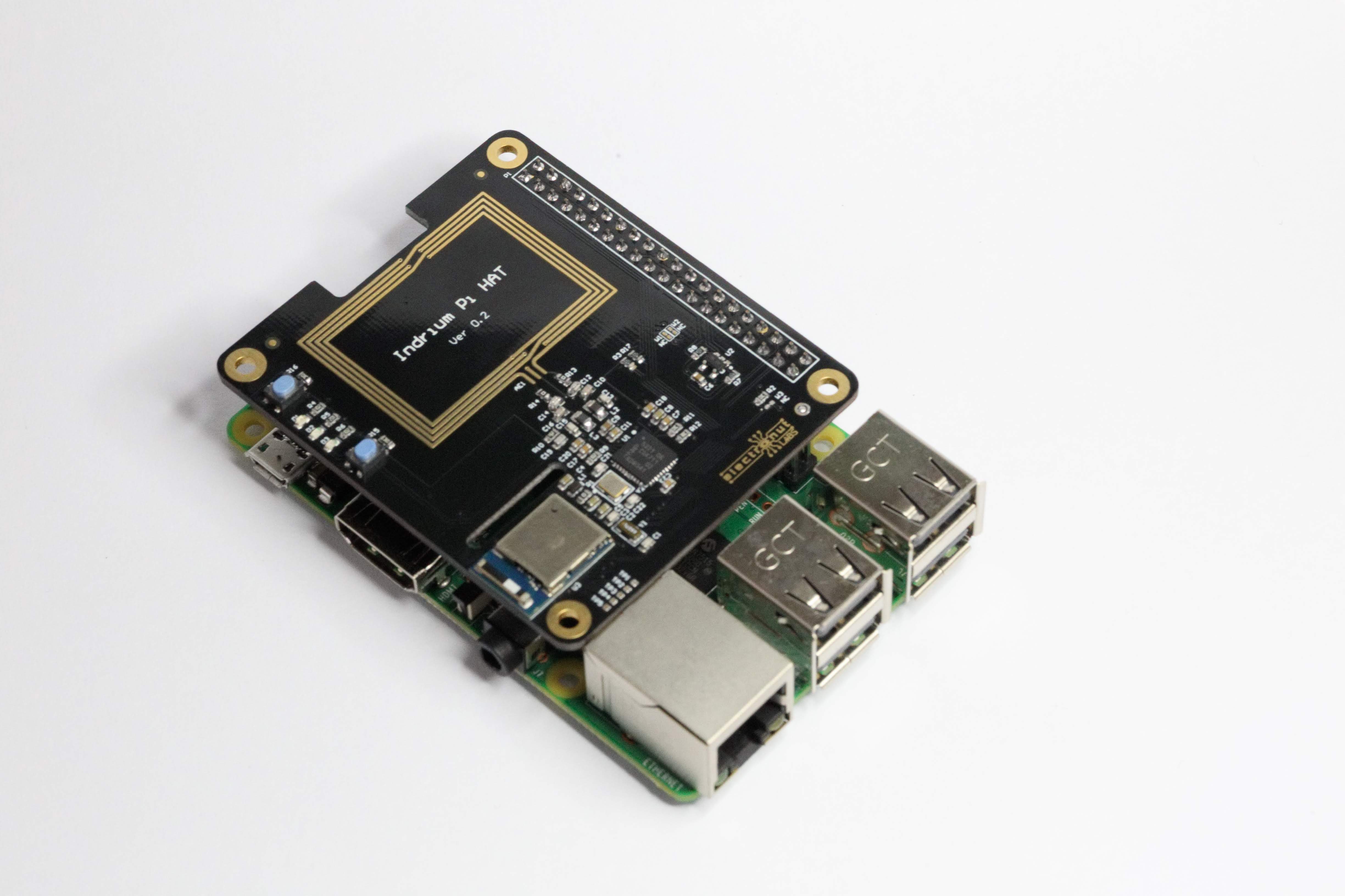

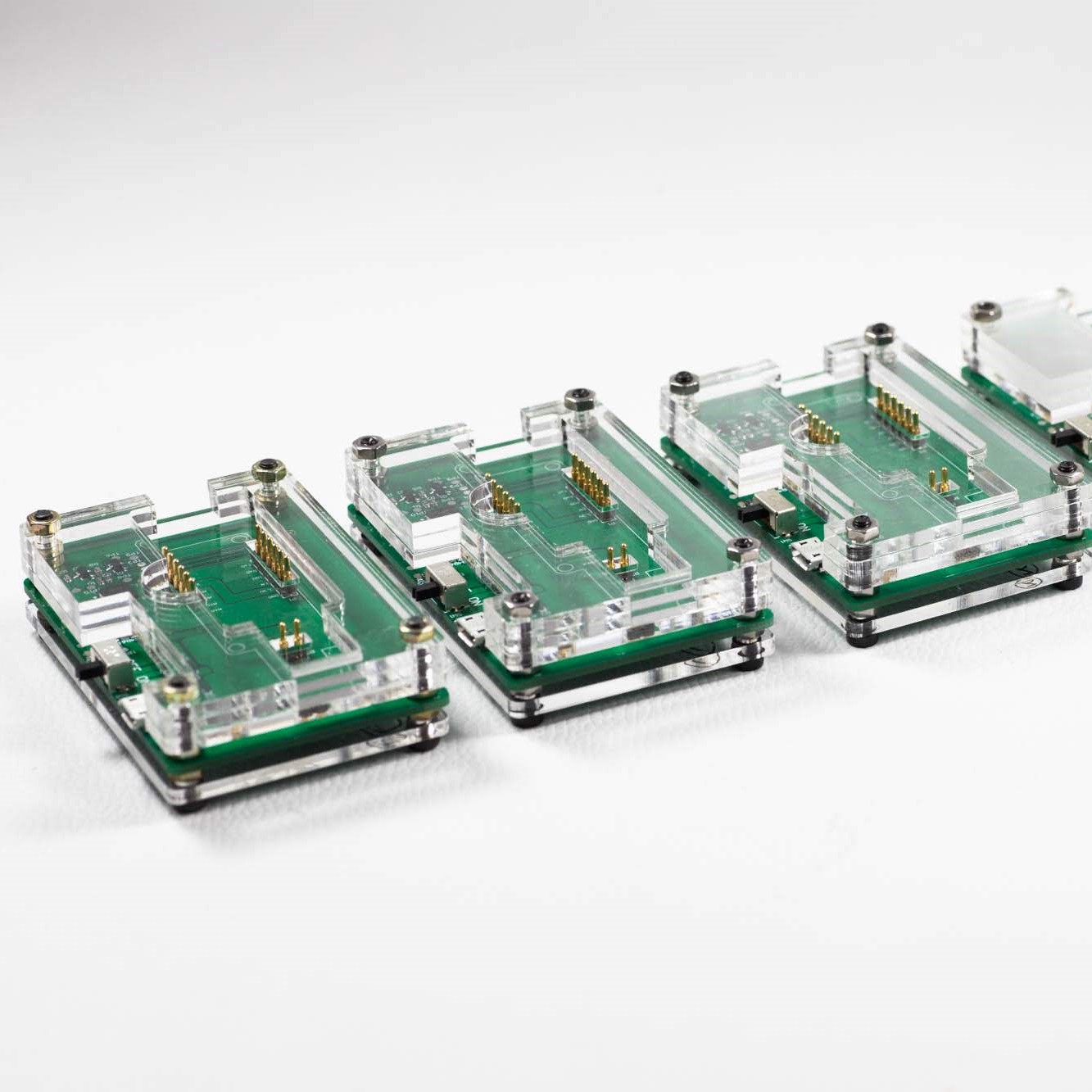

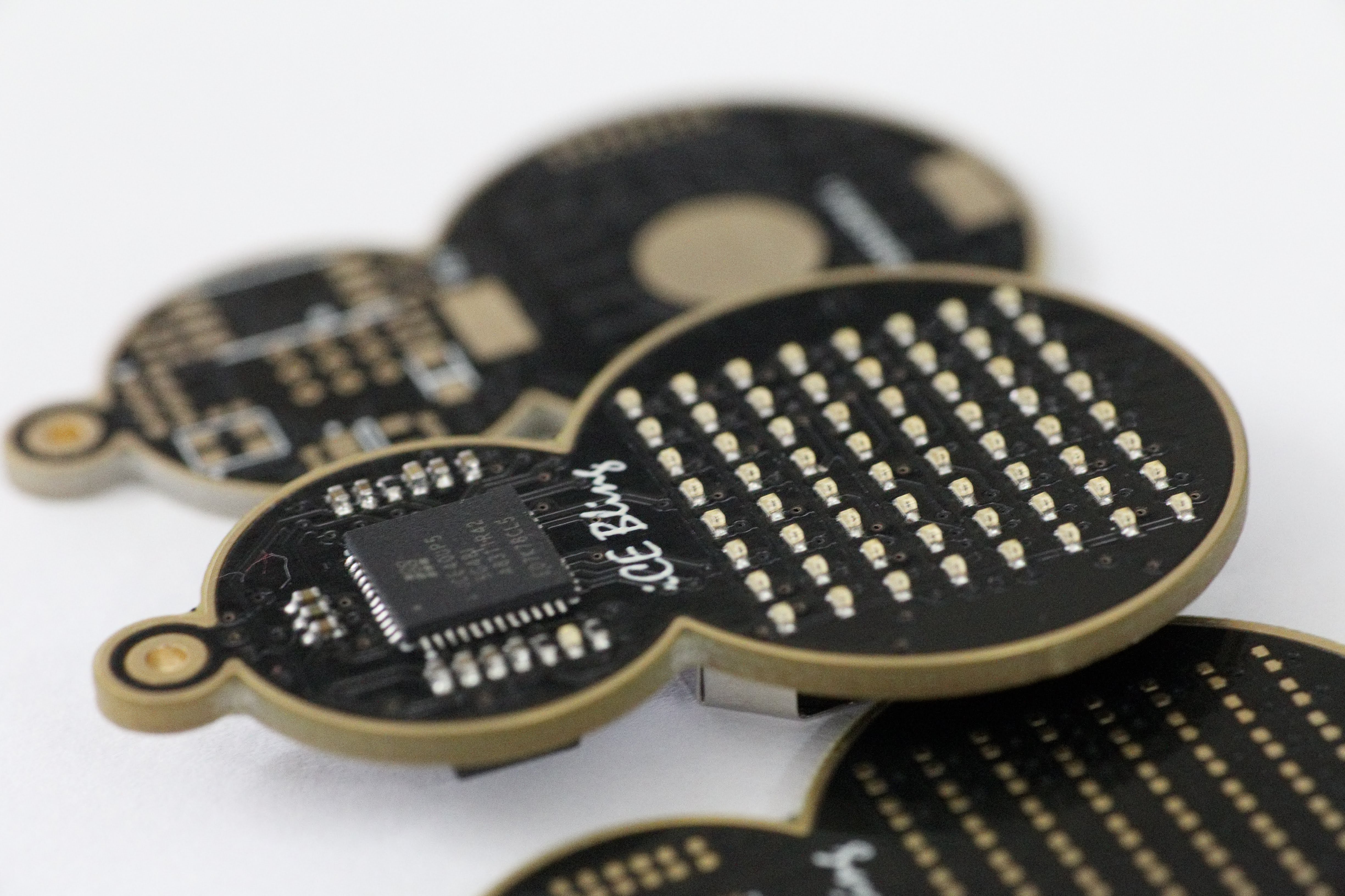

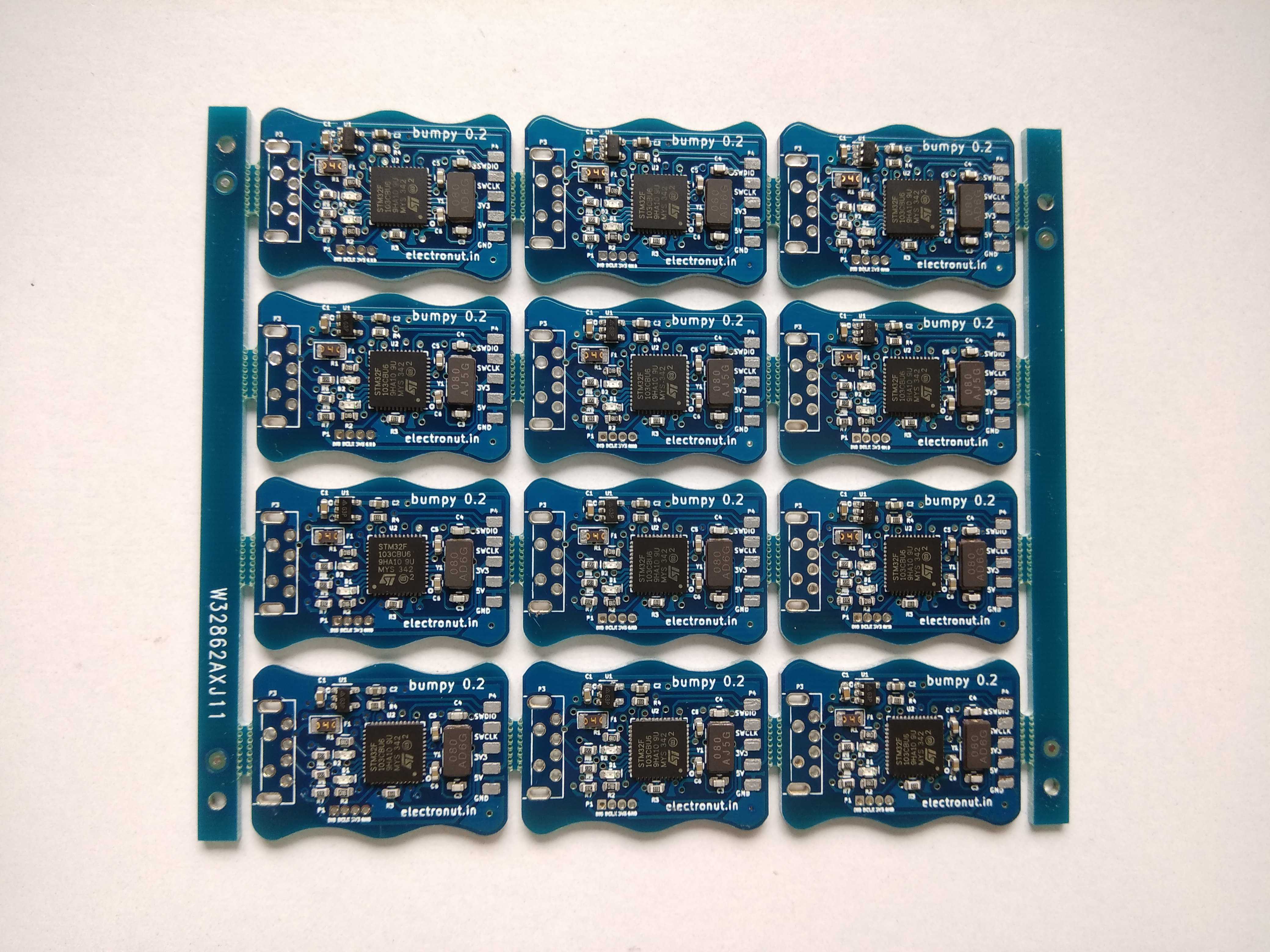

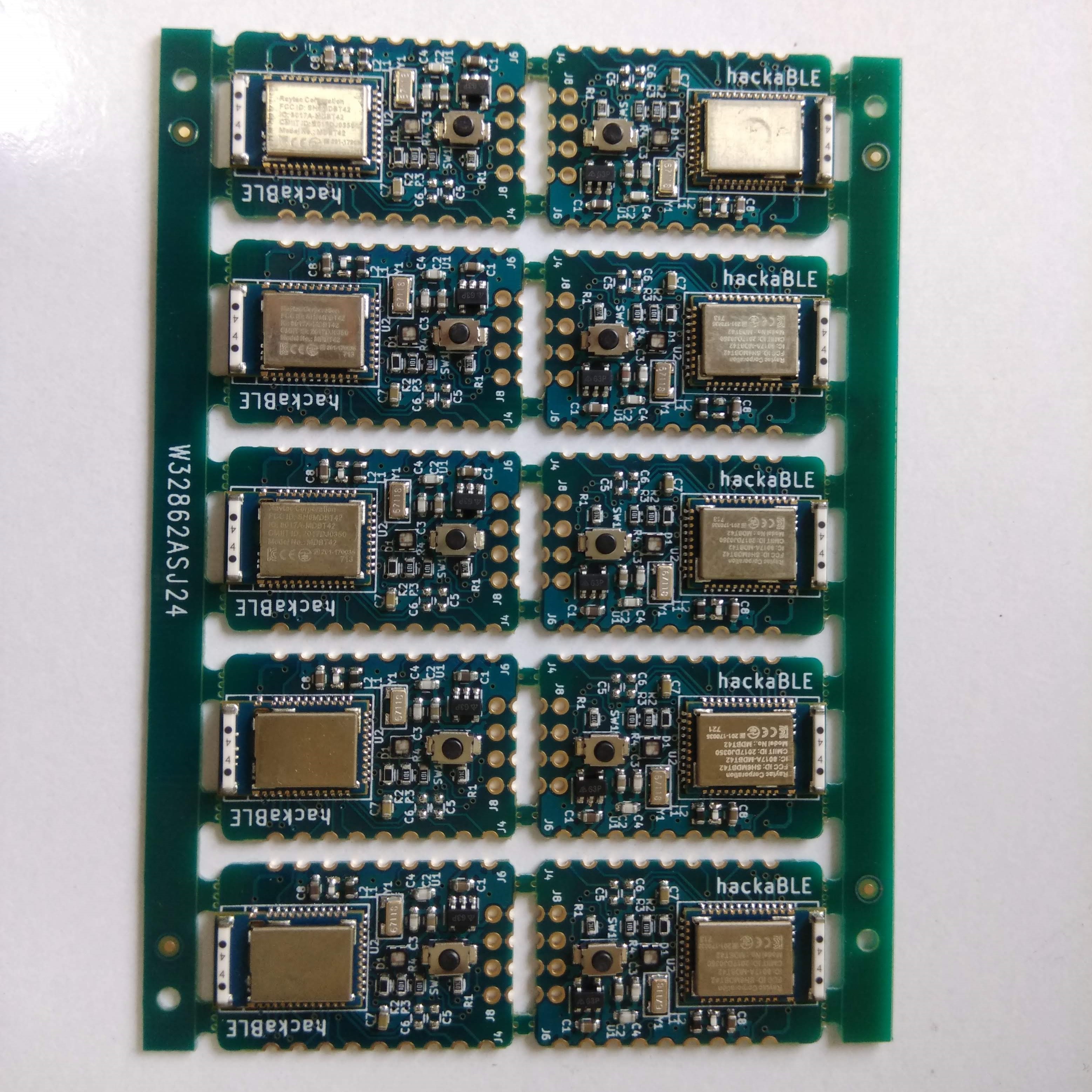

Designed PCB's and production jigs. Used Kicad and Altium designer tools for all these boards. Some of the boards are Blip, Blipboy Shield, Paper, Bluey, hackaBLE, Bumpy, iCE Bling, Indrium PI-hat, Thermalert, and iCE-Edge.

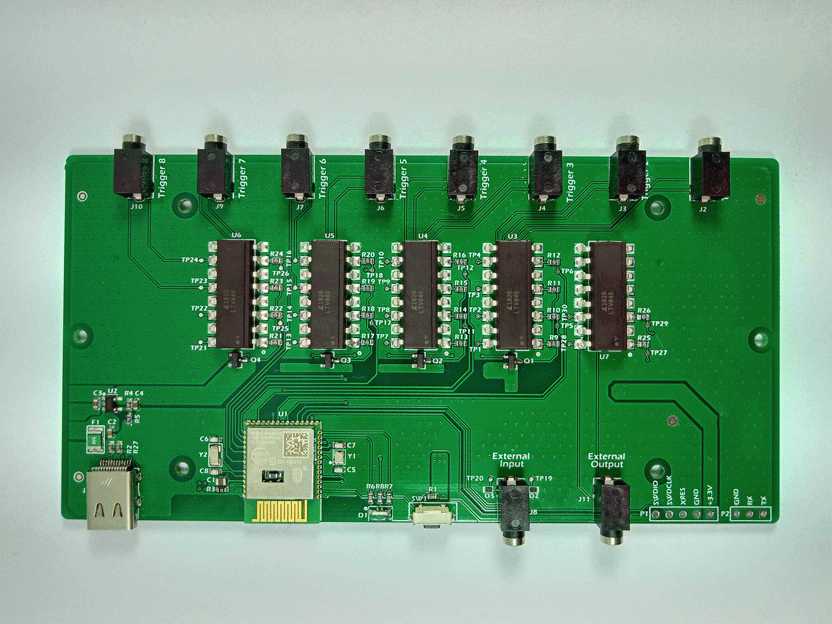

Wireless Multiple Camera Trigger
PSCO6, Multiple cameras connector
Multiple camera triggering based on the external trigger and the mobile app. Used for photography.

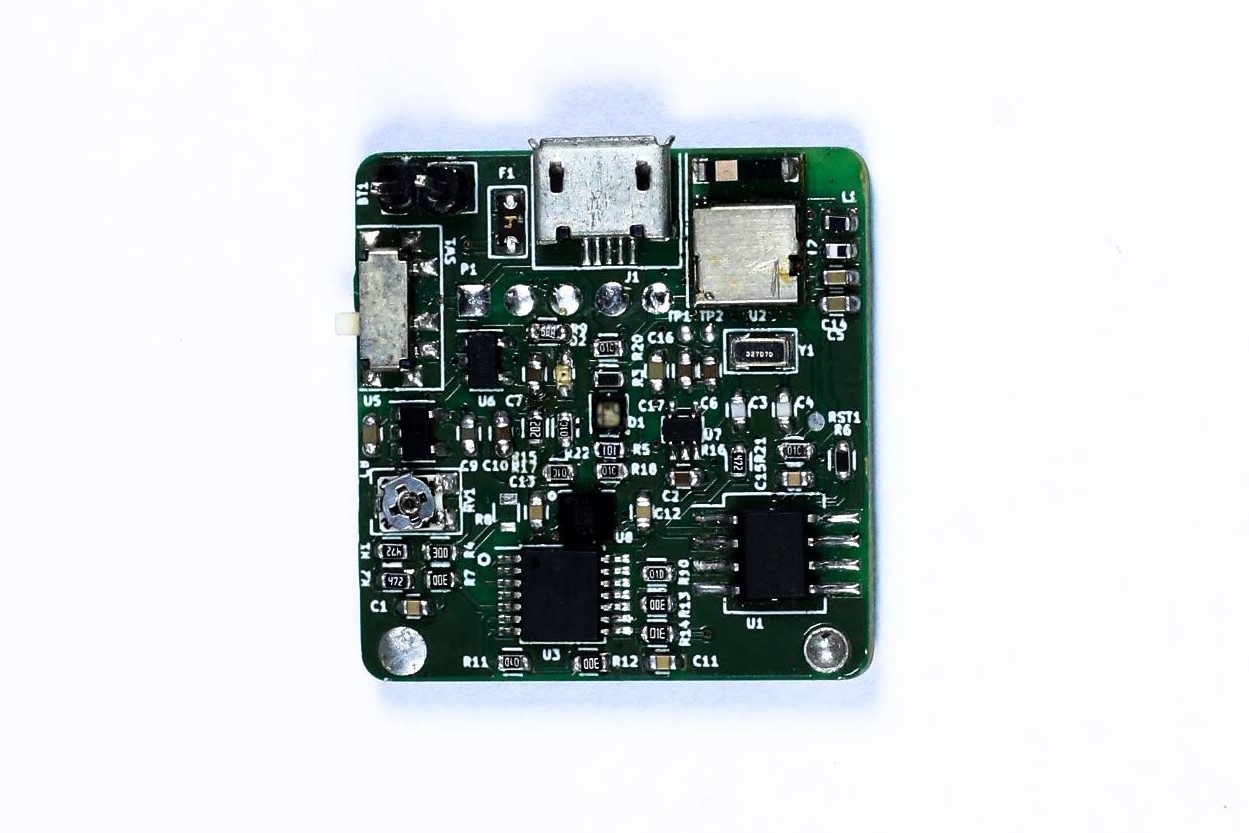

Fitness Tracker
nRF52832, GSR, Heart Rate Monitor Sensor, 6-axis accelerometer
Designed a fitness tracker for a client with functionality like heart rate monitoring, Galvanic Skin Response(GSR). Power-optimized components selection, schematic and PCB Layout.

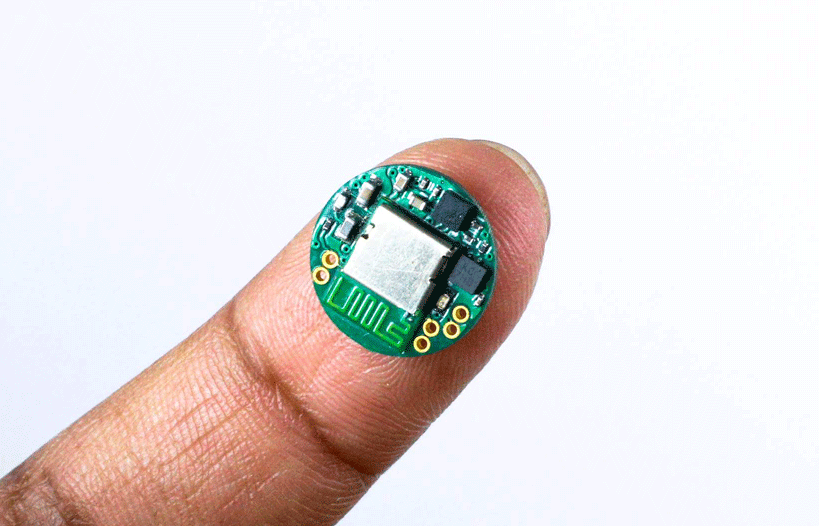

BLE Beacon
The smallest beacon for retail security.
BLE beacon size was 13mm in diameter. It has a 3-axis accelerometer and a tripwire system. If the accelerometer detects motion or the tripwire detects removal. The project had very constrained requirements for component selection, routing, and production/testing.

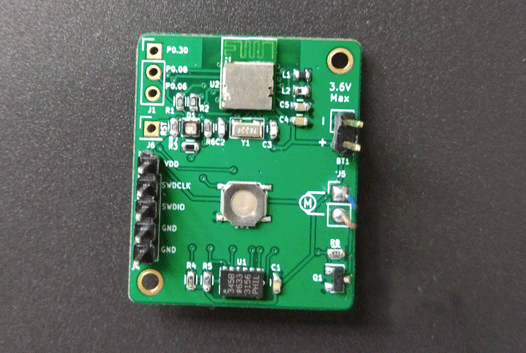

Smart ID for safety
BLE, Accelerometer, Vibration motor, Power optimization
nRF52832 based smart ID card for safety purpose incorporated vibration motor, accelerometer for fall detection and button for sending the trigger to the server and app.

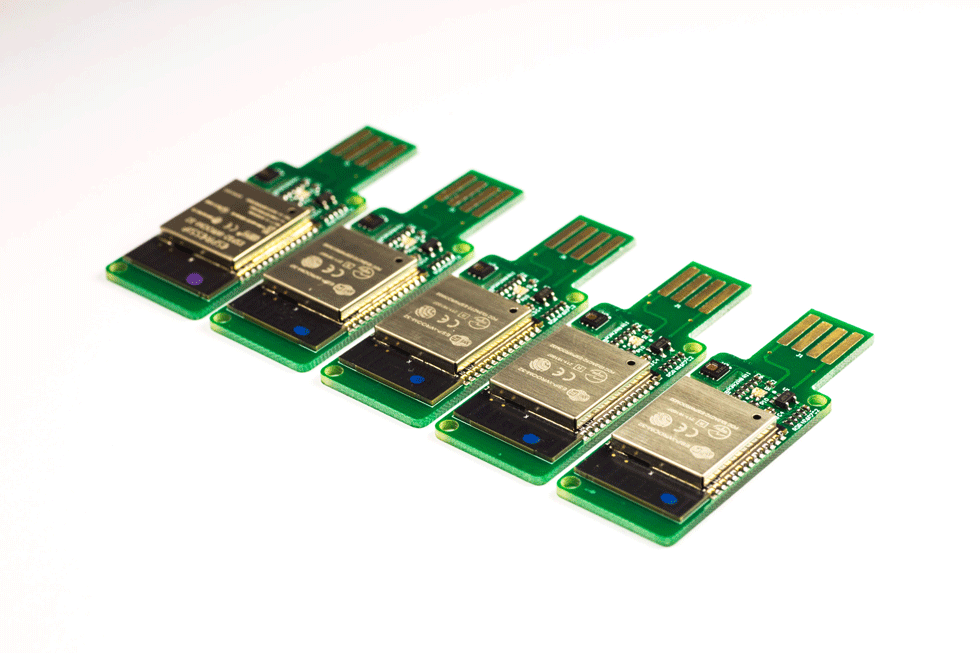

Wifi based Skincare Device
ESP32 USB dongle
Designed compact PCB with EPS32 WiFi Module and low-power Temp/ Humidity sensor. The ESP module was heating up the PCB, the challenge was make optimized thermal management.
BLE Based Medical Device for EEG Mesurement
BLE based patient monitoring system
Designed two nRF52932 based PCB’s. Worked with firmware engineers for developing and testing the prototype. Provided guidelines to the mechanical engineer to develop the enclosure
BLE based asset tracking system

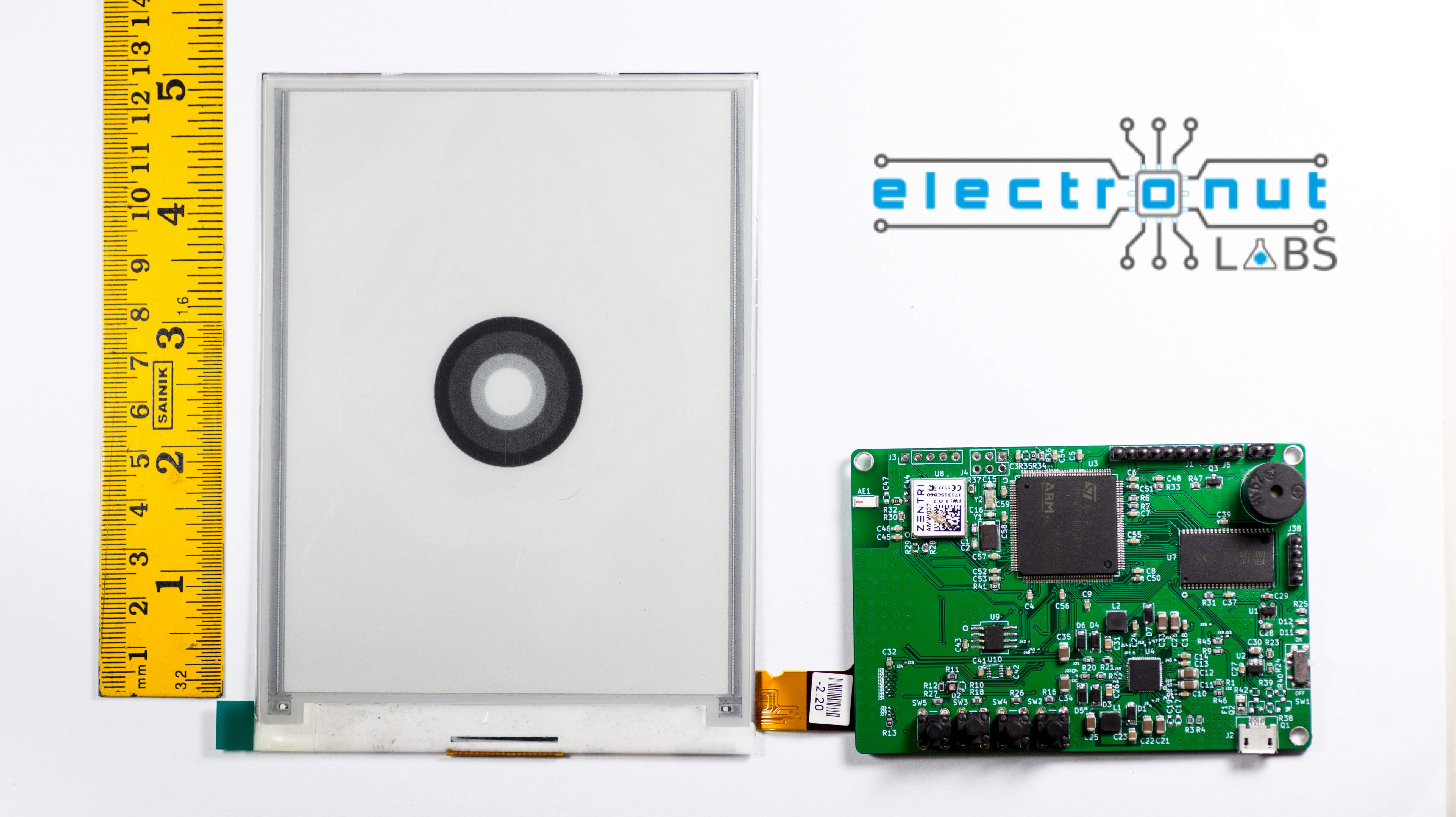

nRF52, BLE, low power, 1.5inch e-paper display, CryptoAuthentication
Developed a device for retail supply chain company for tracking and logging data of pallets and goods transported overseas. Used IMU, BLE gateways to accomplish this.

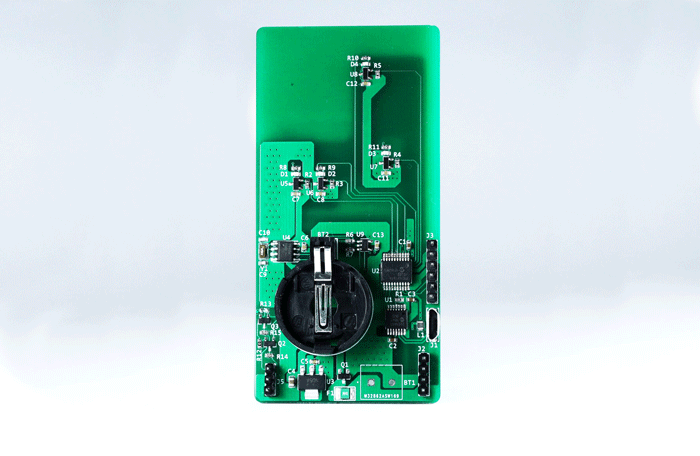

Magnetic Calibration
PIC16, Hall effect, EEPROM
Designed Prototypes for an automotive client, who needed to calibrate fifth wheel coupling using hall effect sensors. We did the hardware design and firmware.

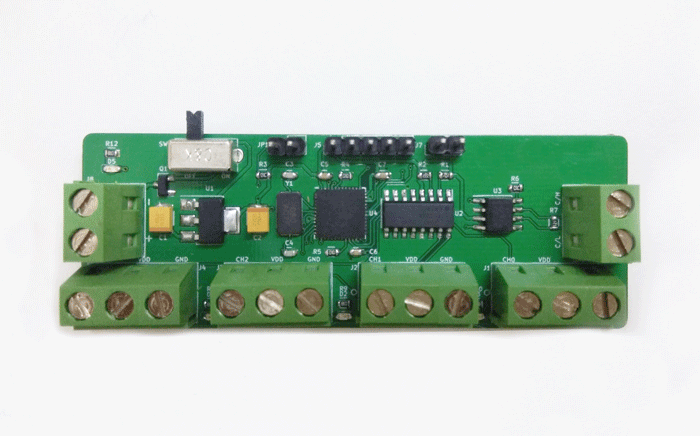

CAN-BUS project
STM32, CAN, I2C, 1-Wire
This was for an automotive industry client, who needed to communicate to multiple sensors and EEPROM over CAN. We did hardware and firmware for translating CAN to 1-wire to I2C transactions.

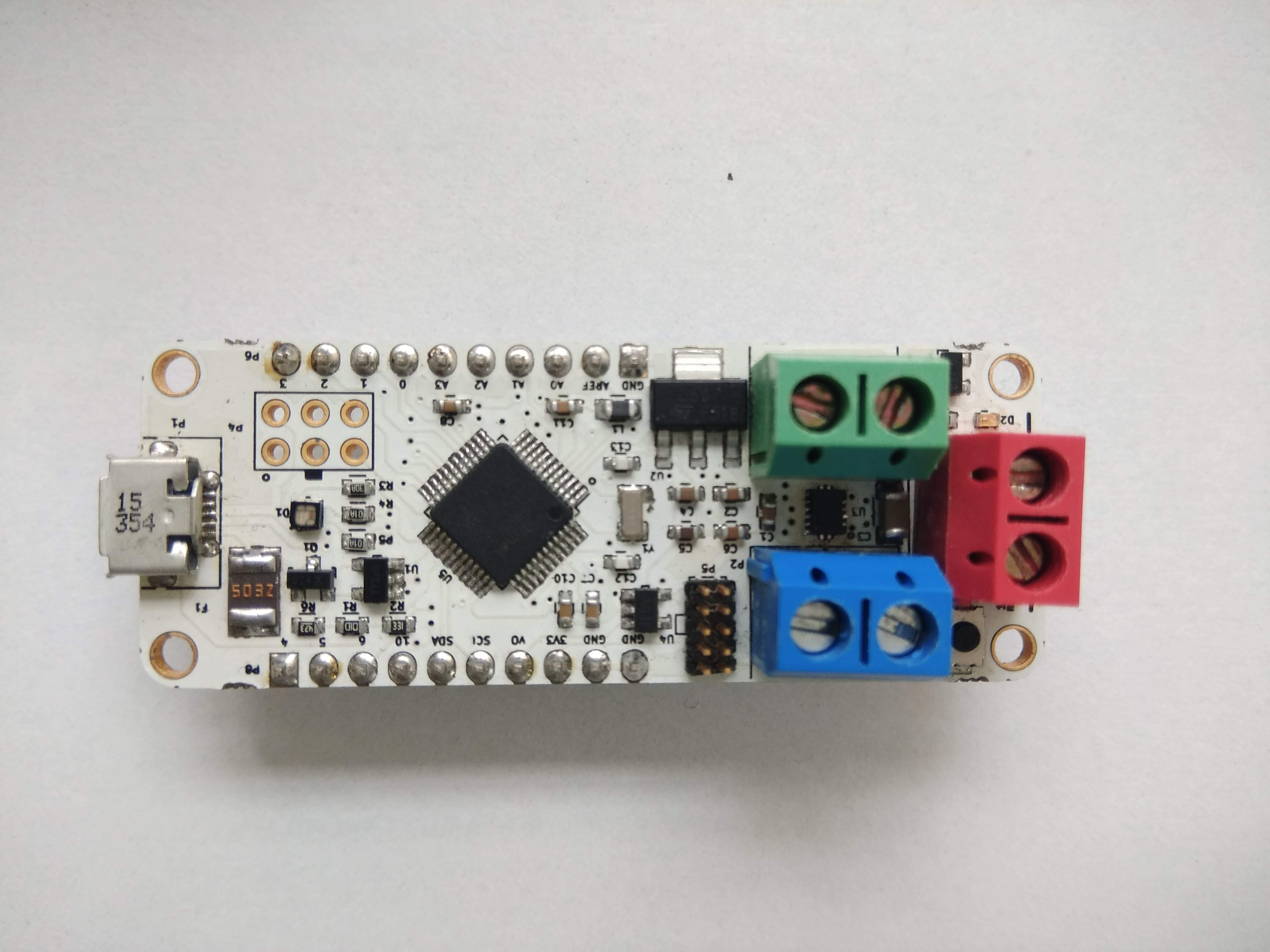

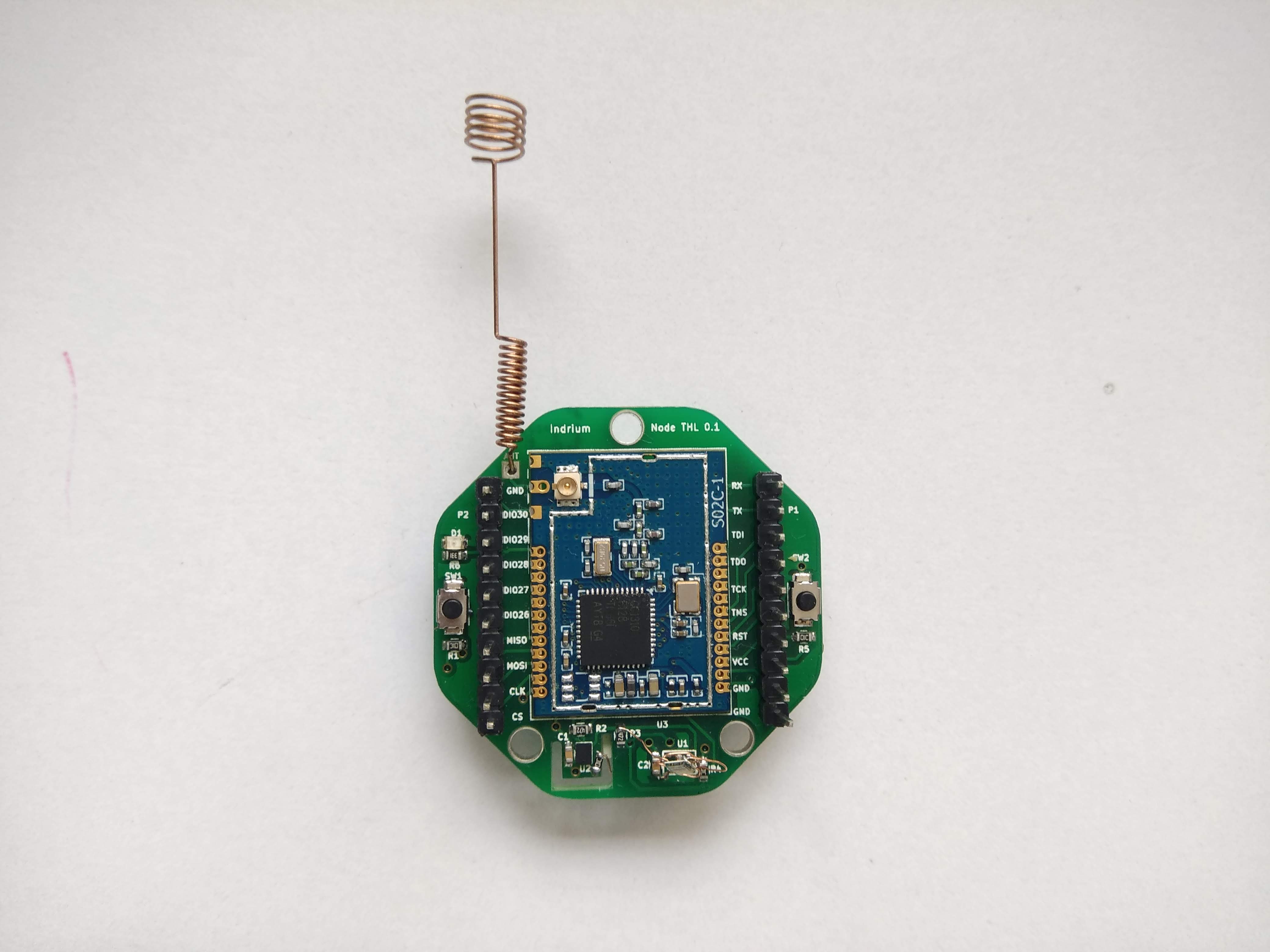

Other Project Images
